Chart of octal codes for characters

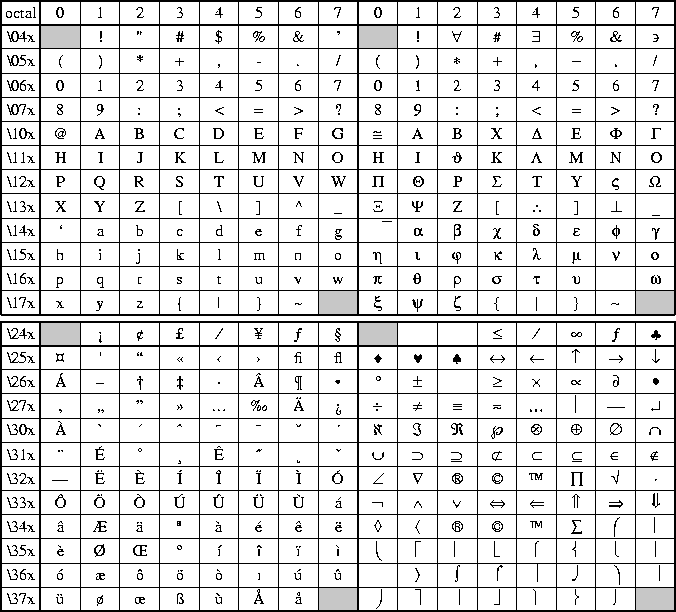

The characters and their octal codes in the reencoded standard (left half) and Symbol (right half, GMT font number 12) character sets are presented in Figure F.1 below. Gray areas signify codes reserved for control characters. The octal code is obtained by appending the column value to the $\backslash$ ?? value, e.g., $\partial$ is $\backslash$ 266 in the Symbol font.

**Figure F.1:** Octal codes and corresponding symbols for standard and Symbol fonts
$\begin{figure}\centering\epsfig{figure=eps/GMT_App_F_1.eps}\end{figure}$

The Pifont ZapfDingbats is available as GMT font number 34 and can be used for special symbols not listed above. The various symbols are illustrated in Figure F.2.

**Figure F.2:** Octal codes and corresponding symbols for ZapfDingbats font
$\begin{figure}\centering\epsfig{figure=eps/GMT_App_F_2.eps}\end{figure}$
