Linear Projection with Polar ($\theta , r$) Coordinates (-–Jp -–JP)

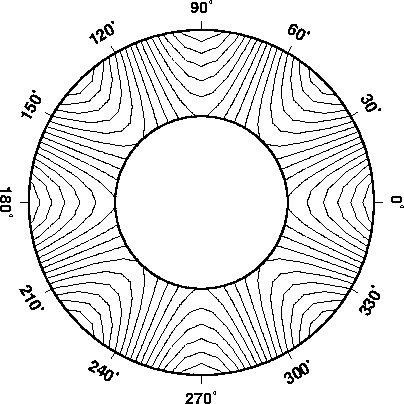

Figure 5.5: Polar (Cylindrical) transformation of ($\theta , r$) coordinates

In many applications the data is better described in polar or cylindrical ($\theta$, r) coordinates rather than the usual Cartesian coordinates (x, y). The relationship between the Cartesian and polar coordinates are described by $x = r \cdot \cos{\theta}, y = r \cdot \sin{\theta}$. The polar transformation is simply defined by providing

$\bullet$ scale in inches/unit (-Jp) or full width of plot in inches (-JP).

As an example of this projection we will create a gridded data set in polar coordinates $z(\theta, r) = r^2 \cdot \cos{4\theta}$using grdmath , a RPN calculator that operates on or creates grdfiles.

grdmath -R0/360/2/4 -I6/0.1 X 4 MUL PI MUL 180 DIV COS Y 2 POW MUL = test.grd
grdcontour test.grd -JP3i -B30Ns -P -C2 -S4 >! GMT_polar.ps

We used grdcontour  to make a contour map of this data. Because the data file only contains values with $2 \leq r \leq 4$, a donut shaped plot appears in Figure 5.5.
